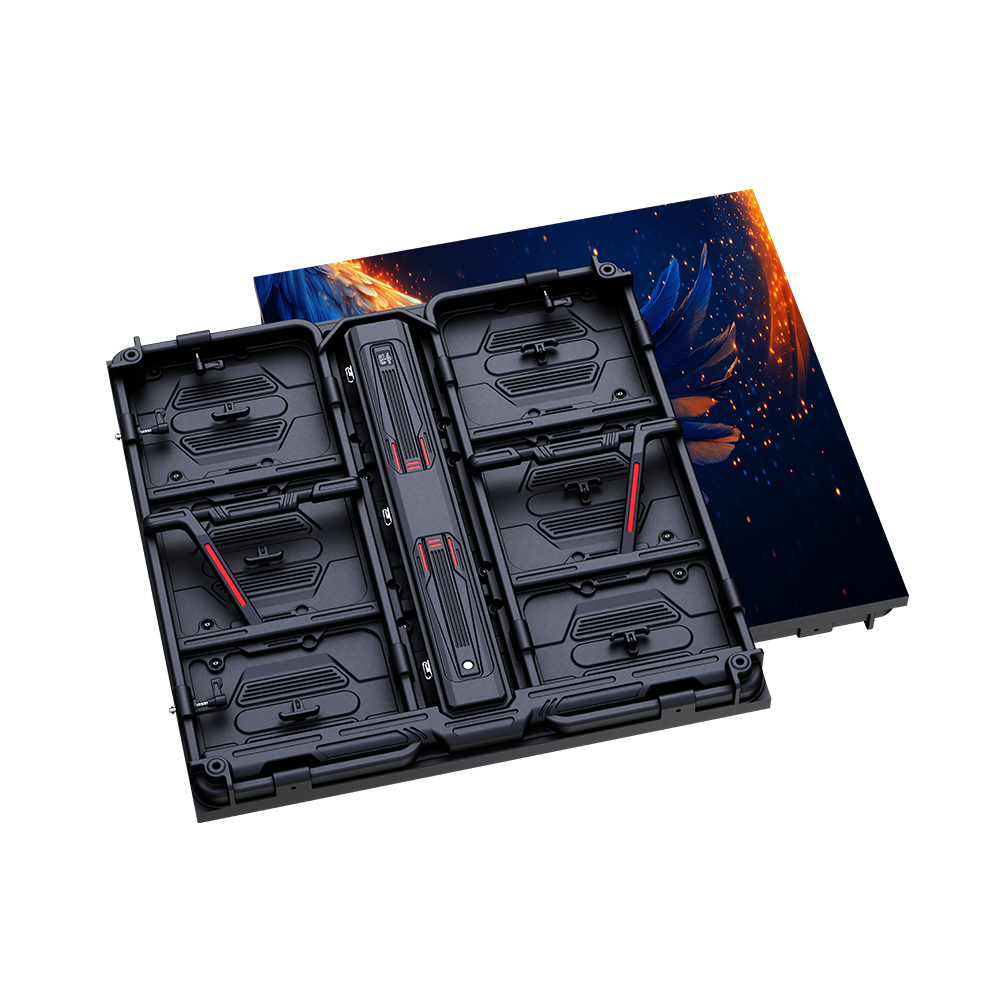

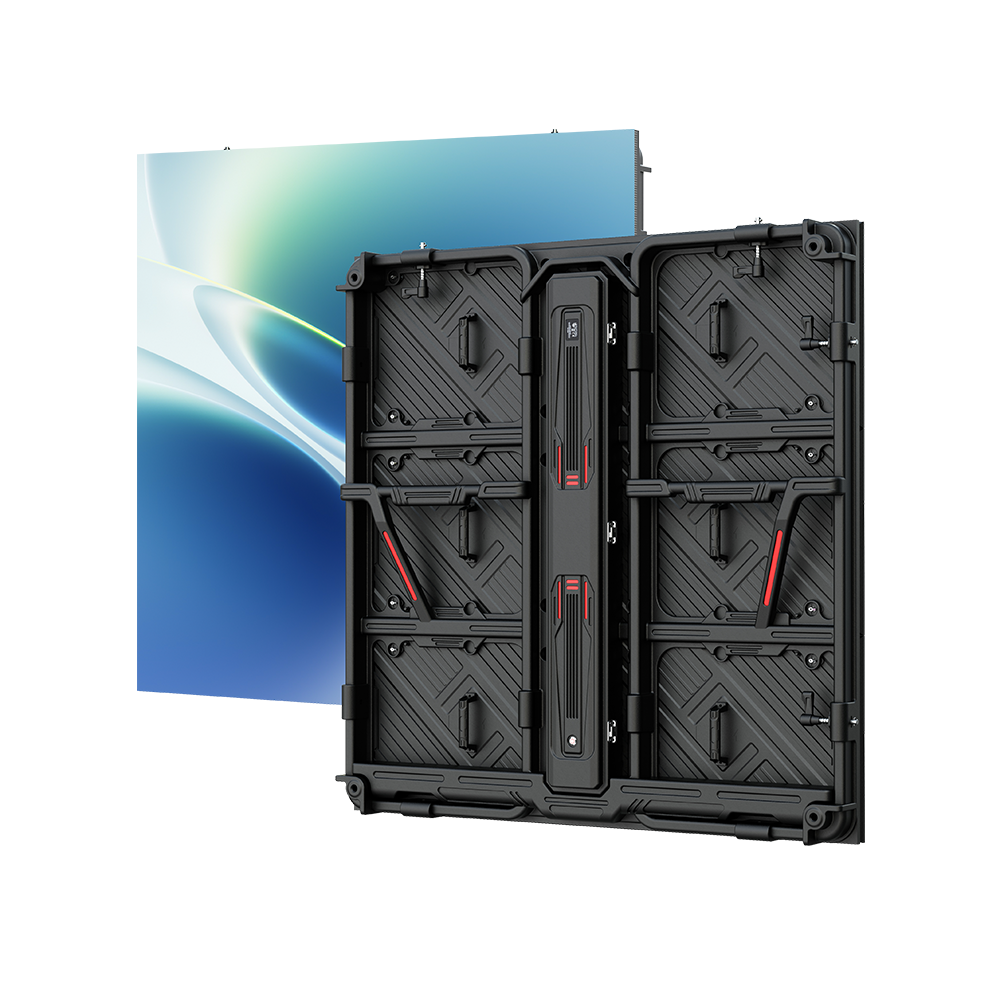

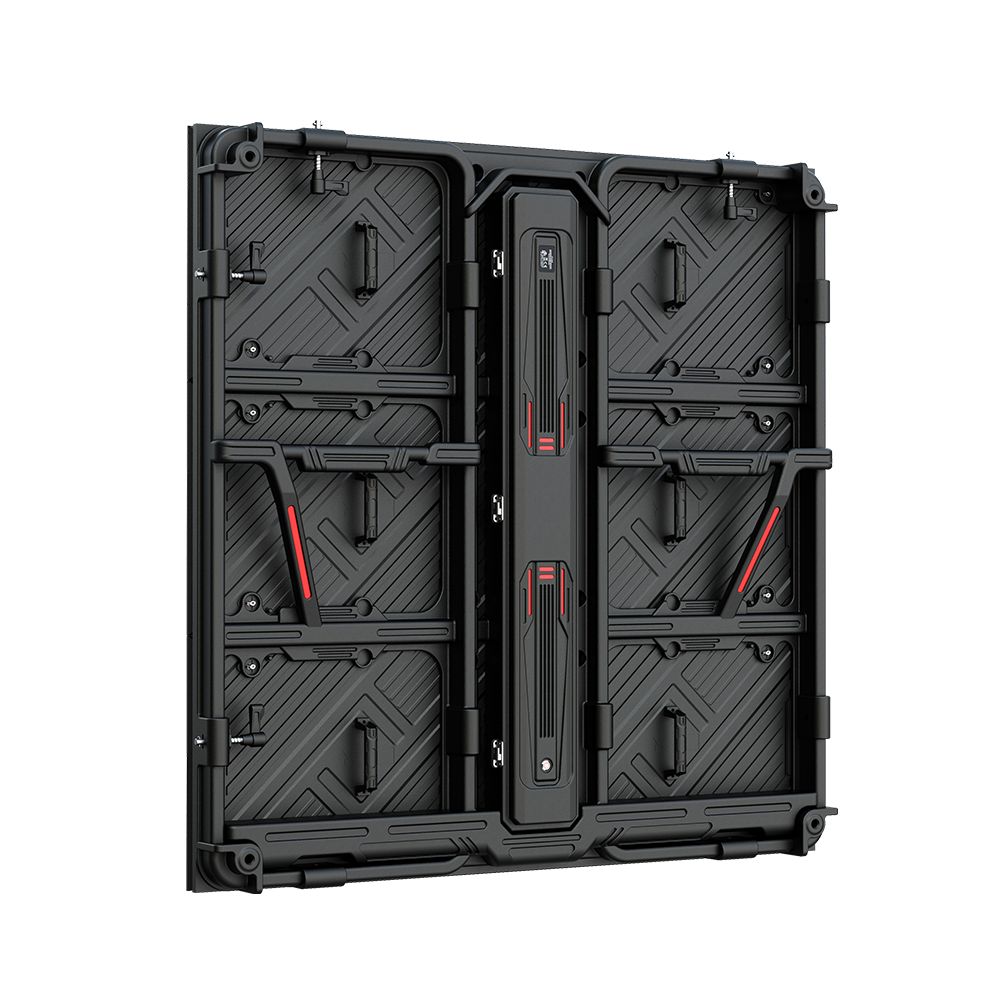

    Outdoor Fixed LED Display Magnesium Die Cast Panel-960SY

    Outdoor Fixed LED Display Magnesium Die Cast Panel-960SY

    Energy Saving Advertising Billboard

    Cabinet Dimensions ：960x960mm
    Module Dimensions ：480*320mm
    Pixel pitch ： 5.7 / 6.6 / 8 / 10
    Brightness/Refresh rate ：4000- 10000NIT/3840Hz
    Maintenance form ： Front & Rear Maintenance

    Lightweight Design

    High Flatness

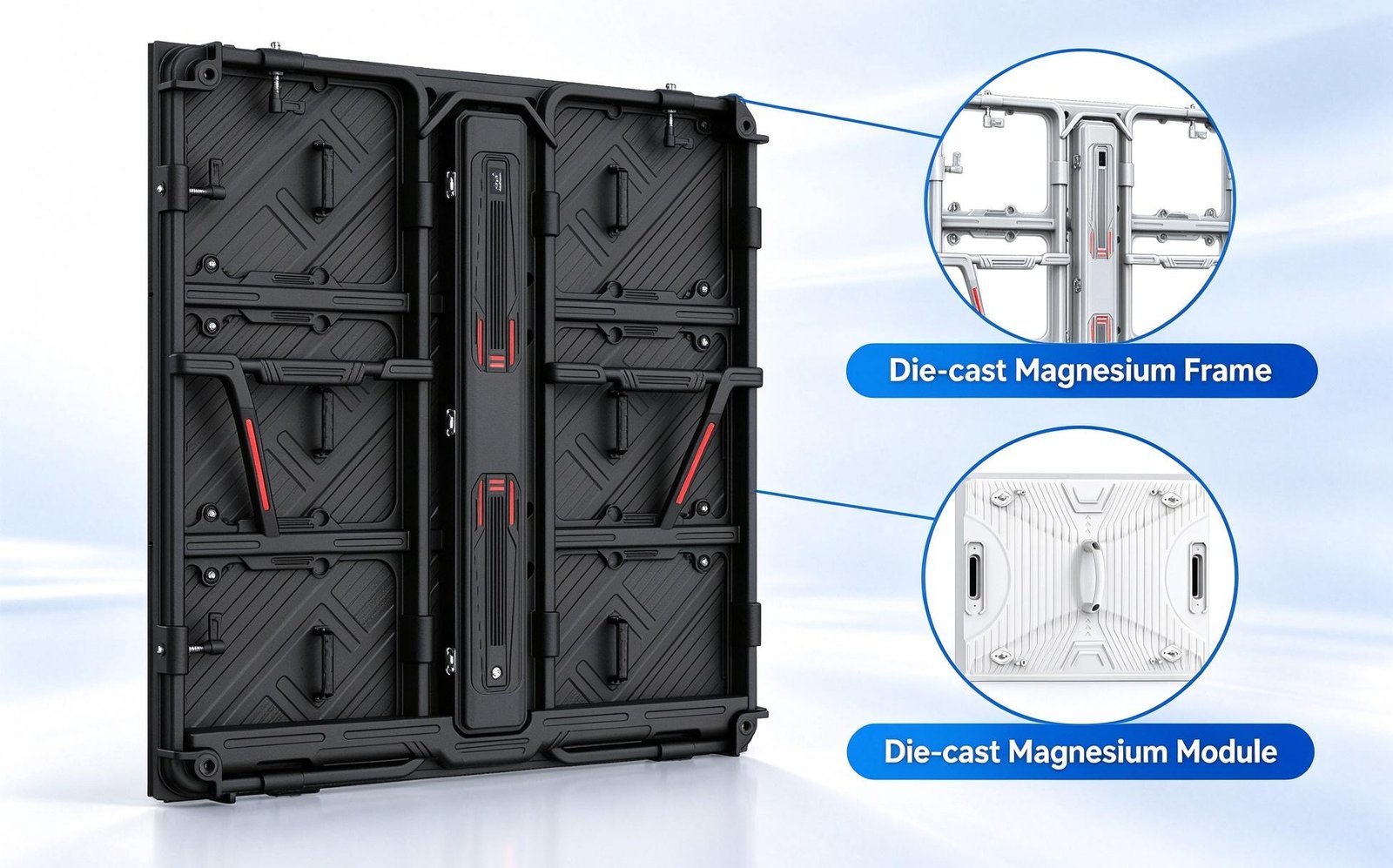

    Die-Cast Magnesium

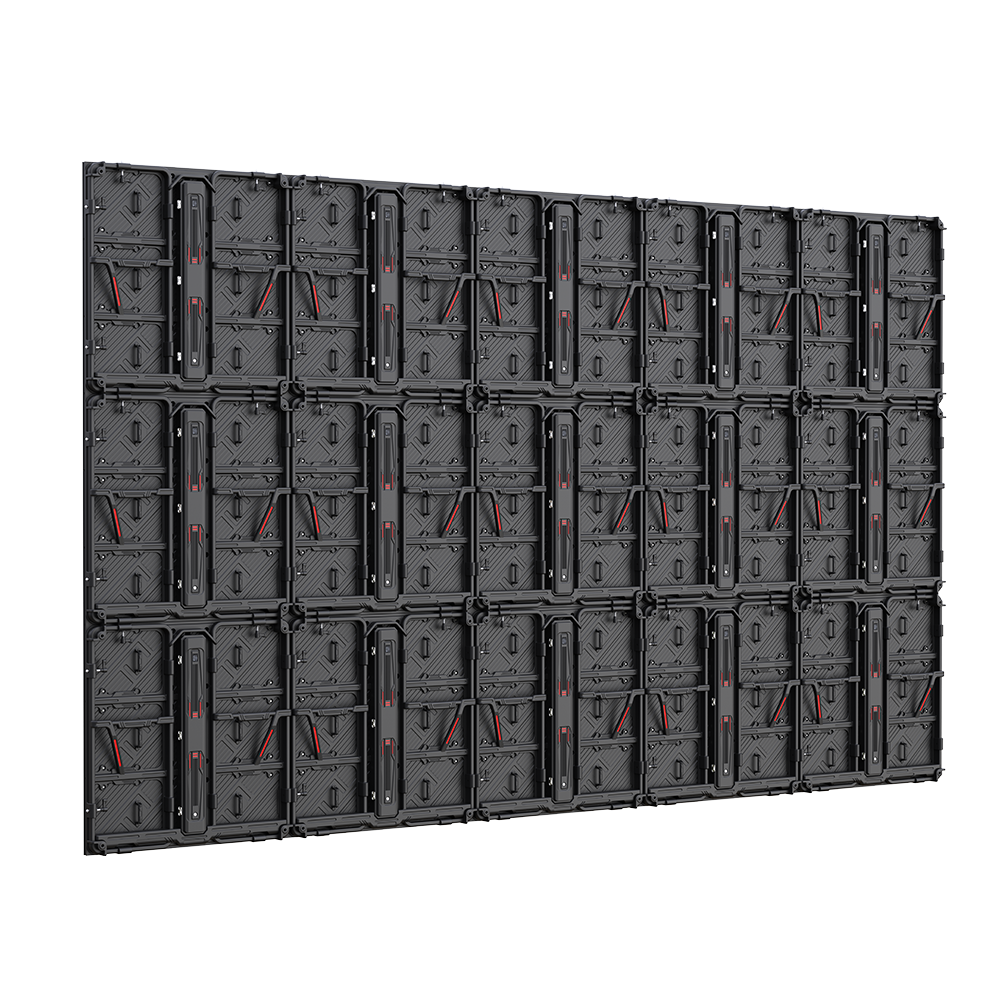

    Quick Installation

    Specification

    ModelOutdoor P3Outdoor P4Outdoor P5Outdoor P6Outdoor P8
    Pixel Pitch (mm)3.076456.678
    Panel Size W*H(mm)960x960 x109960x960 x109960x960 x109960x960 x109960x960 x109
    Panel Resolution(W*H)312x312240x240192x192144x144120x120
    Panel MaterialDie-casting MagnesiumDie-casting MagnesiumDie-casting MagnesiumDie-casting MagnesiumDie-casting Magnesium
    Panel Weight（Kg）29±5%29±5%29±5%29±5%29±5%
    Brightness (nits)5000~60005500~70005500~70006000~100006000~10000
    ServiceabilityRear / FrontRear / FrontRear / FrontRear / FrontRear / Front

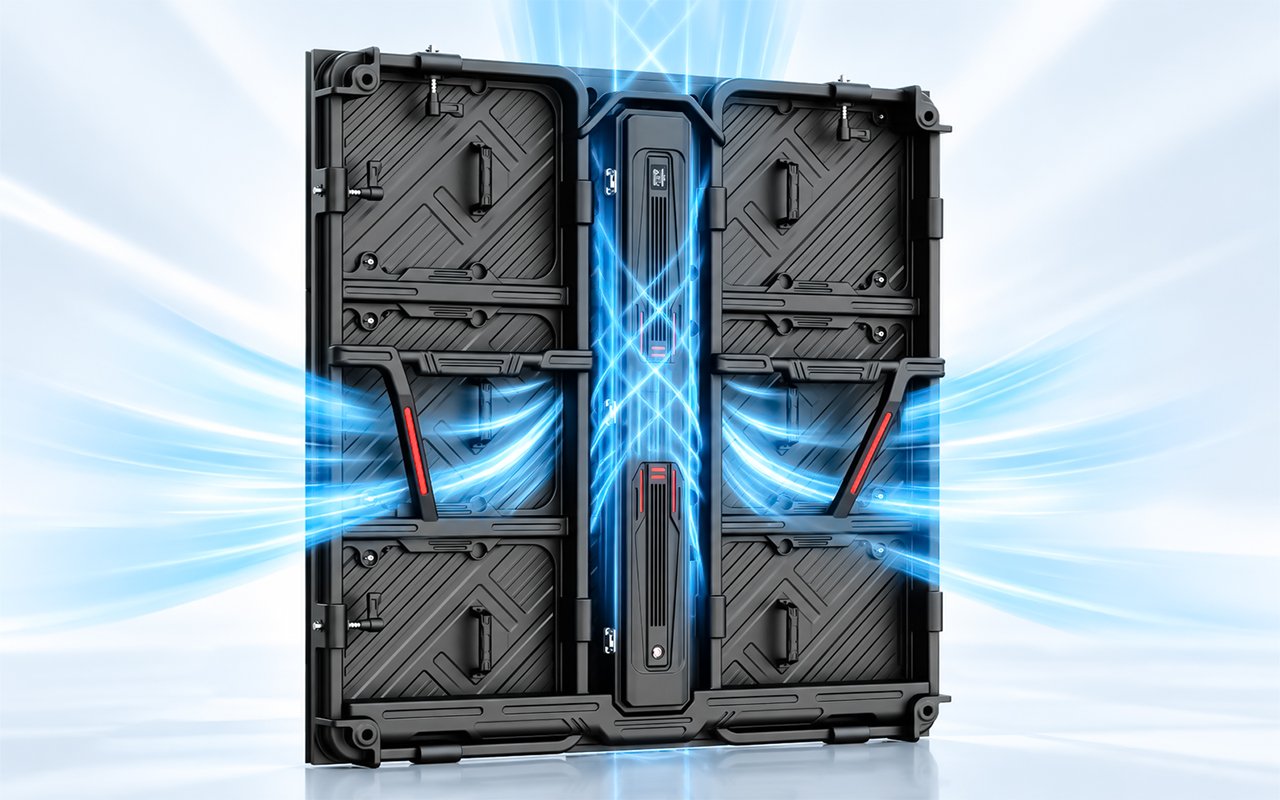

    Excellent Heat Dissipation

    · Fanless design reduces both noise and screen failure rate during operation
    · Efficient Heat Dissipation With Multiple Special Design

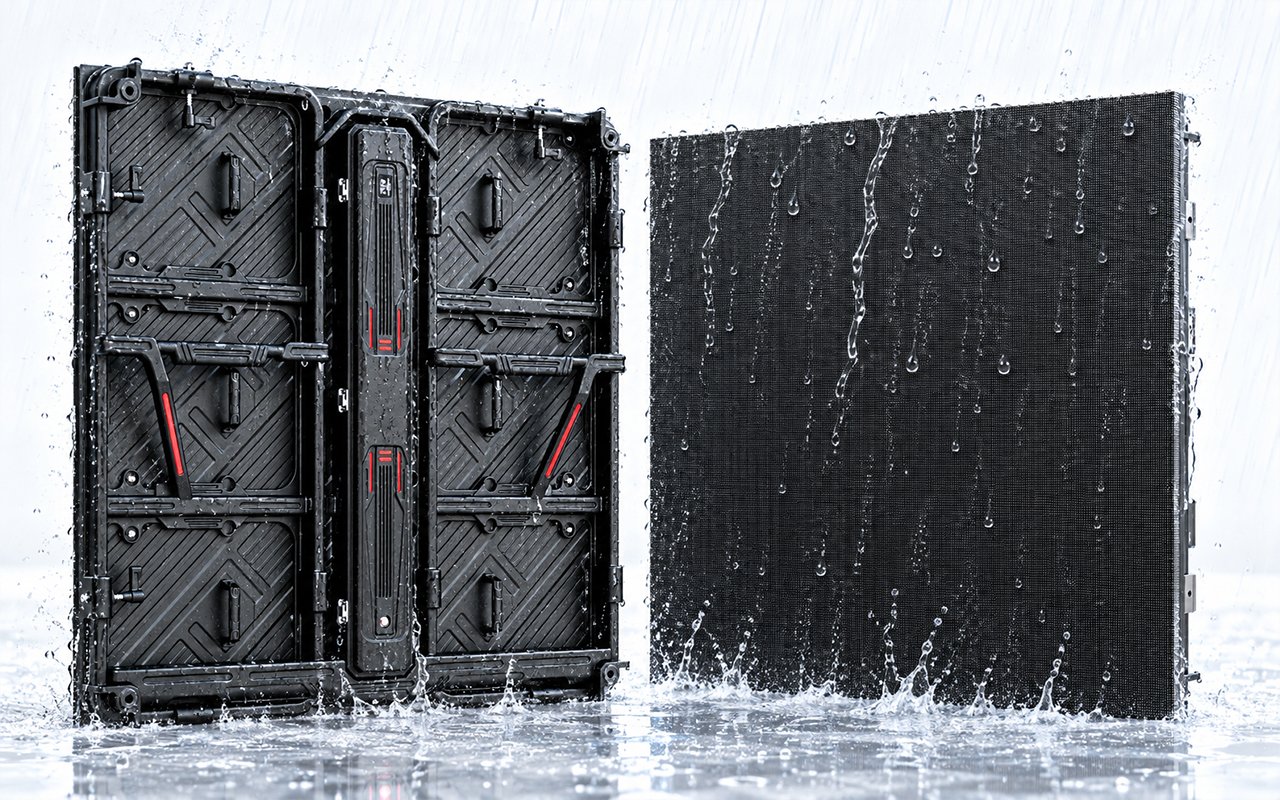

    IP66 super protective performance

    · Fully enclosed design, guarantees completely safety and very satisfactory dust prevention, waterproofness and corrosion resistance
    · Trouble-free operation even in extremely harsh environments

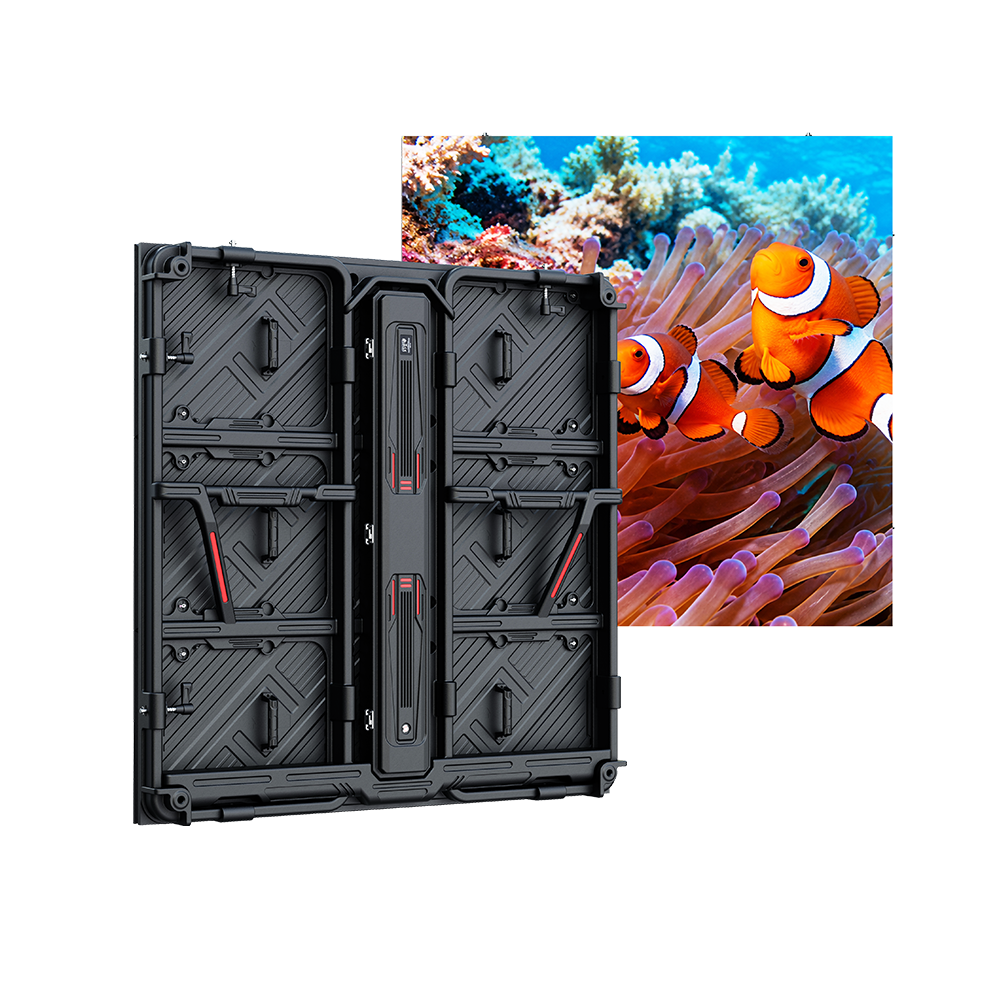

    Elaborate Design for Excellent Visual Effect

    High-contrast LEDs, superior visual performanceWith low-power constant-current ICs, 3840 Hz refresh rate Unique dual-row transistor circuit design, uniform brightness and consistent white balance

    Ultra-slim & lightweight

    Featuring lightweight Die-cast Magnesium cabinets, theproduct weighs only 23kg/m2, reducing transportation andinstallation costs.
