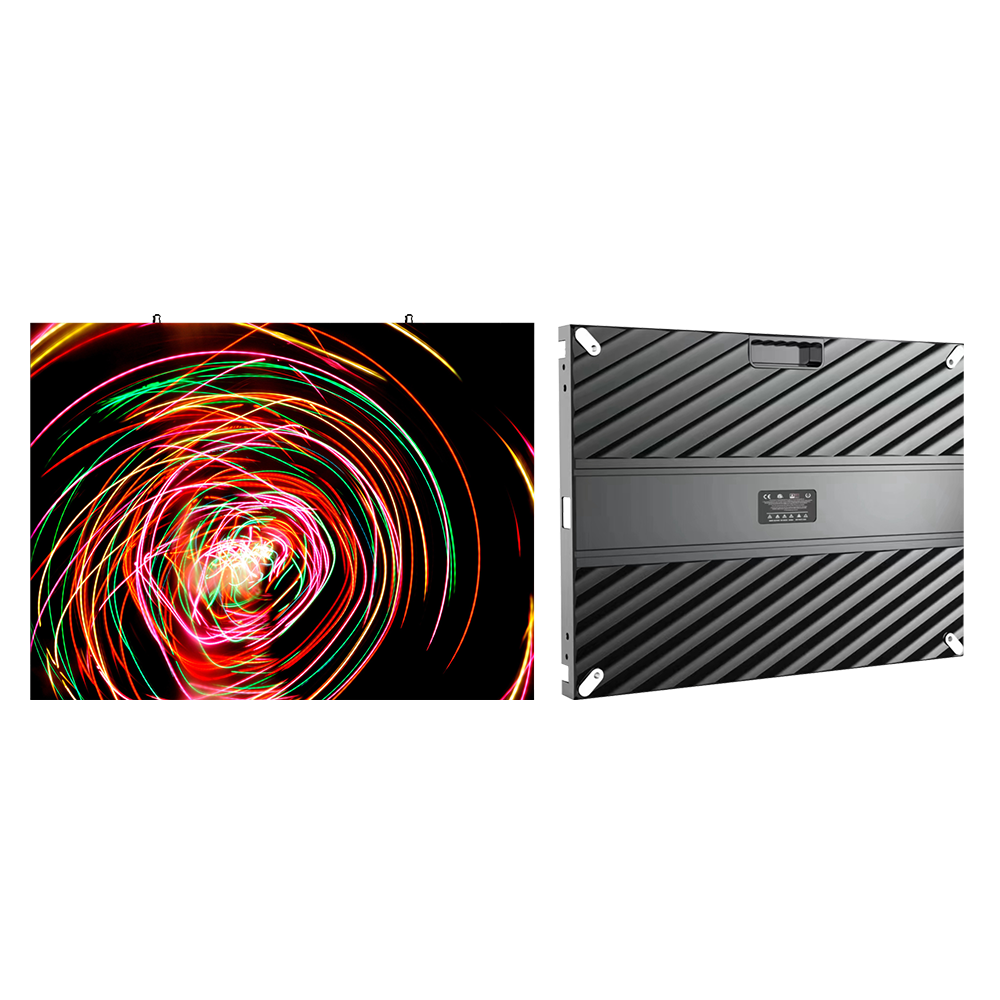

    FM Series Indoor 640*480 LED display Panel

    FM Series Indoor 640*480 LED display Panel

    Upgraded Proven Fine-Pitch LED Display

    Product Model : indoor FM Series
    Cabinet Dimensions : 640*480mm
    Pixel pitch : 1.25/1.53/1.86/2.0/2.5
    Brightness/Refresh rate : 800NIT/3840Hz
    Maintenance form  : Front Maintenance

    Lightweight Design

    High Flatness

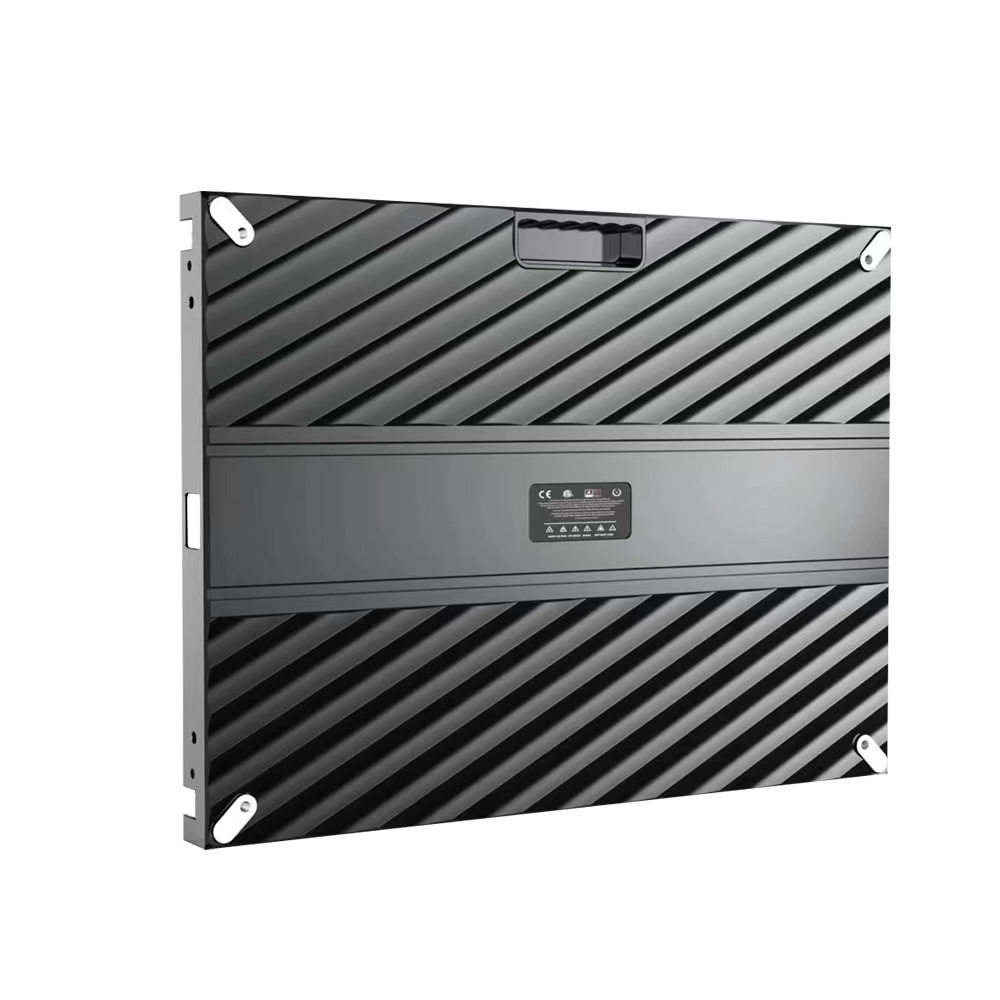

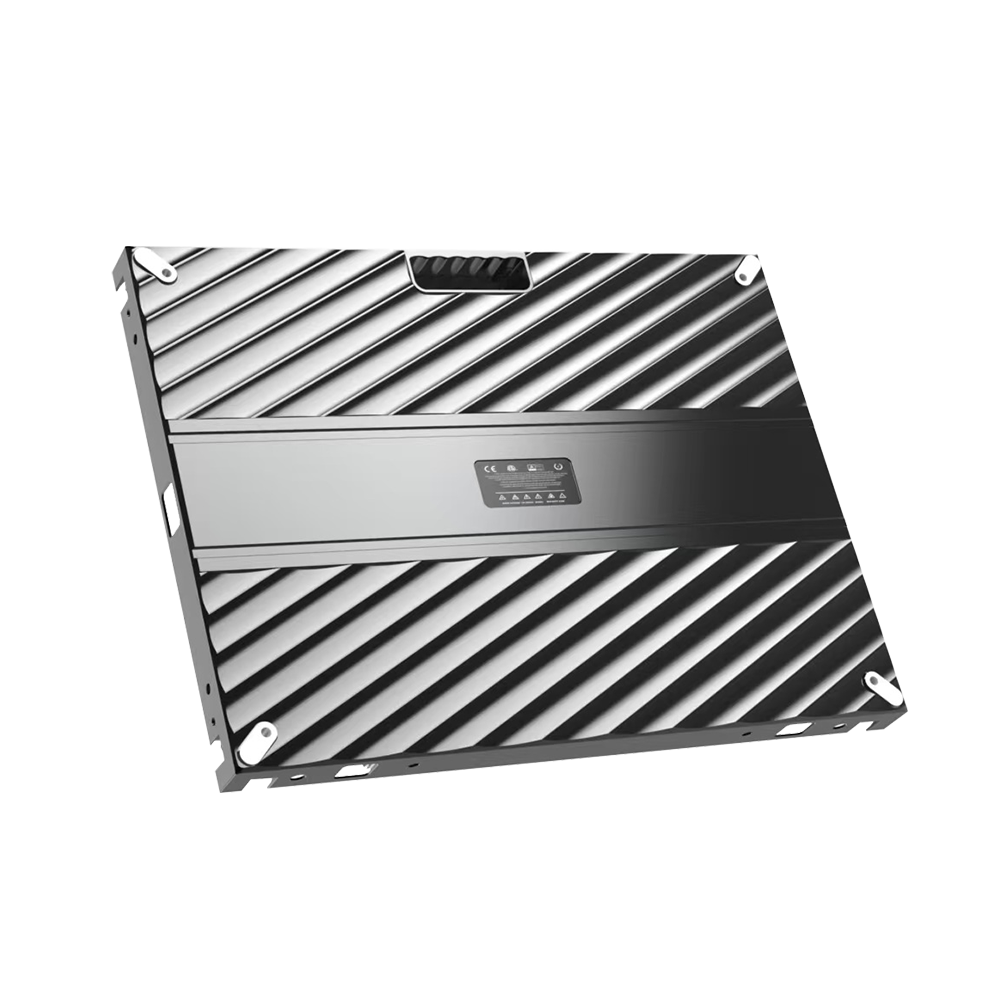

    Die-Cast Aluminum

    Quick Installation

    Specification

    ParameterIndoor P1.25Indoor P1.53Indoor P1.86Indoor P2.5
    Pixel Pitch1.25 mm1.53 mm1.86 mm2.5 mm
    LED PackageSMD1010SMD1212SMD1515SMD1515
    Pixel Density640,000 dots/m²425,300 dots/m²288,906 dots/m²160,000 dots/m²
    Module SizeW320 × H160 mm
    Module Resolution256 × 128 dots208 × 104 dots172 × 86 dots128 × 64 dots
    Cabinet SizeW640 × H480 × D50 mm
    Cabinet Resolution512 × 384 dots418 × 312 dots344 × 258 dots256 × 192 dots
    Module ProcessGOBGOBGOBGOB / Mask
    Cabinet MaterialDie-casting Aluminum
    Cabinet Weight5.5 kg ±5%
    Maintenance MethodFront Service
    Brightness600–700 cd/m²
    Refresh Rate≥ 3840 Hz
    Input VoltageAC 220V/50Hz or AC 110V/60Hz
    Max Power Consumption500 W/m²
    Avg Power Consumption300 W/m²
    IP RatingIP31 (Front)
    Gray Scale16 bit
    Contrast Ratio5000:1
    Color Temperature3000–9300 K adjustable
    Viewing AngleH 160° / V 160°
    Operating Temperature-10 to 40 ℃
    Operating Humidity10%–80% RH non-condensing
    LED Lifetime≥ 100,000 hours
    CertificationsCE / RoHS
    Control SystemNovastar compatiblev

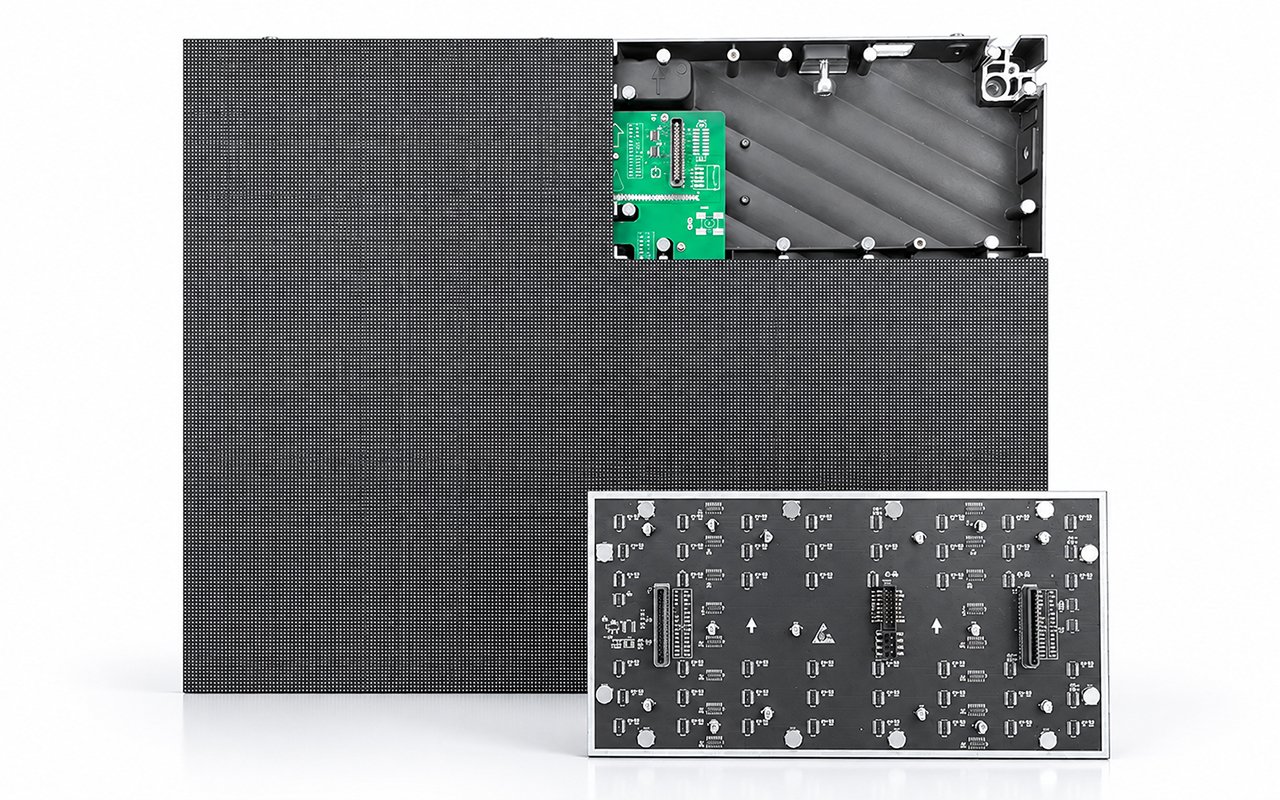

    GOB Protection, Kit-Free & Ultra-Thin

    Epoxy resin coating protects against splashes, dust, and collisions, shielding SMD LEDs from damage. The surface is durable and easy to clean with a wet cloth.Features a unique design with no plastic bottom shell. With magnets mounted directly on the PCB, the module achieves an ultra-slim thickness of only 30mm.

    Excellent Display Performance

    Damag Vision offers digital display walls with 700-800nit (indoor) high brightness and more than 3840Hz high refresh rates, without affect the display effect even in low brightness.

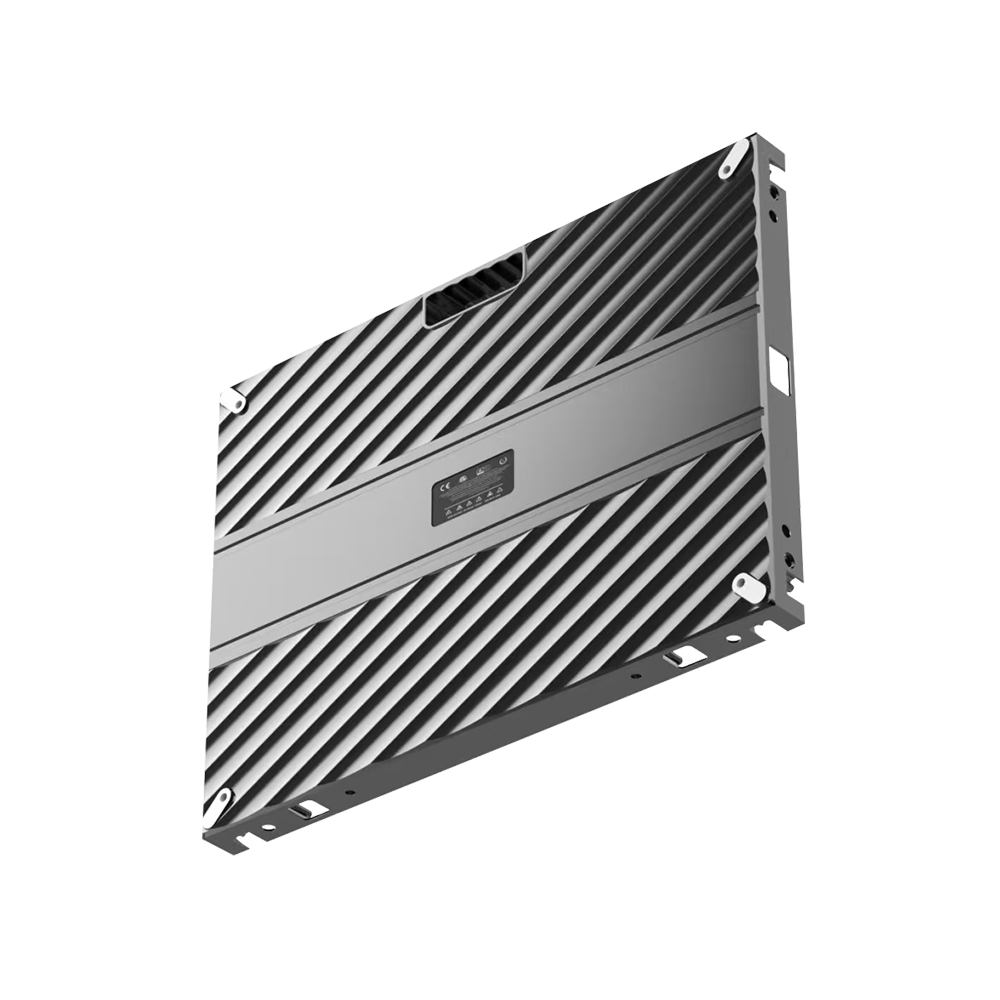

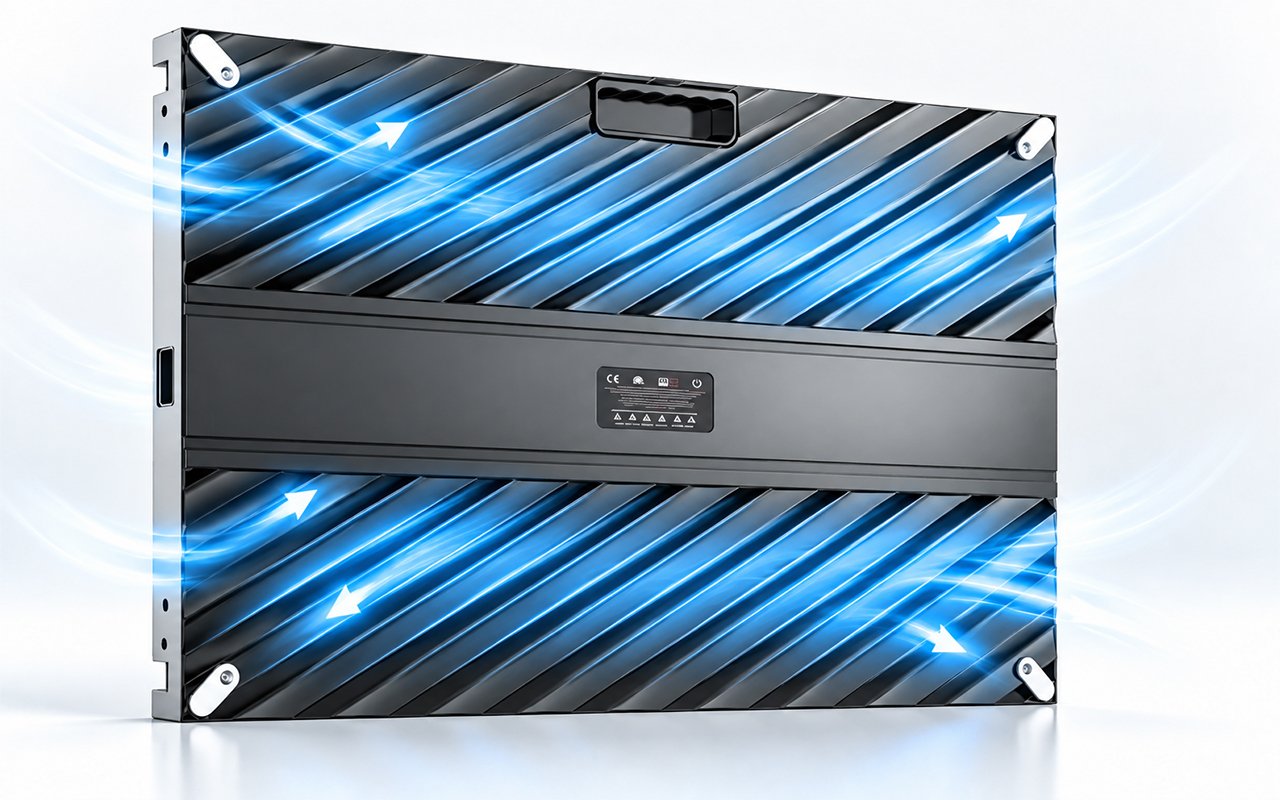

    Die-Cast Aluminum, Fan-Free Cooling

    A 640×480mm die-cast aluminum cabinet dissipates heat naturally — no fans to fail, no noise, and a lighter load on your wall than steel cabinets.

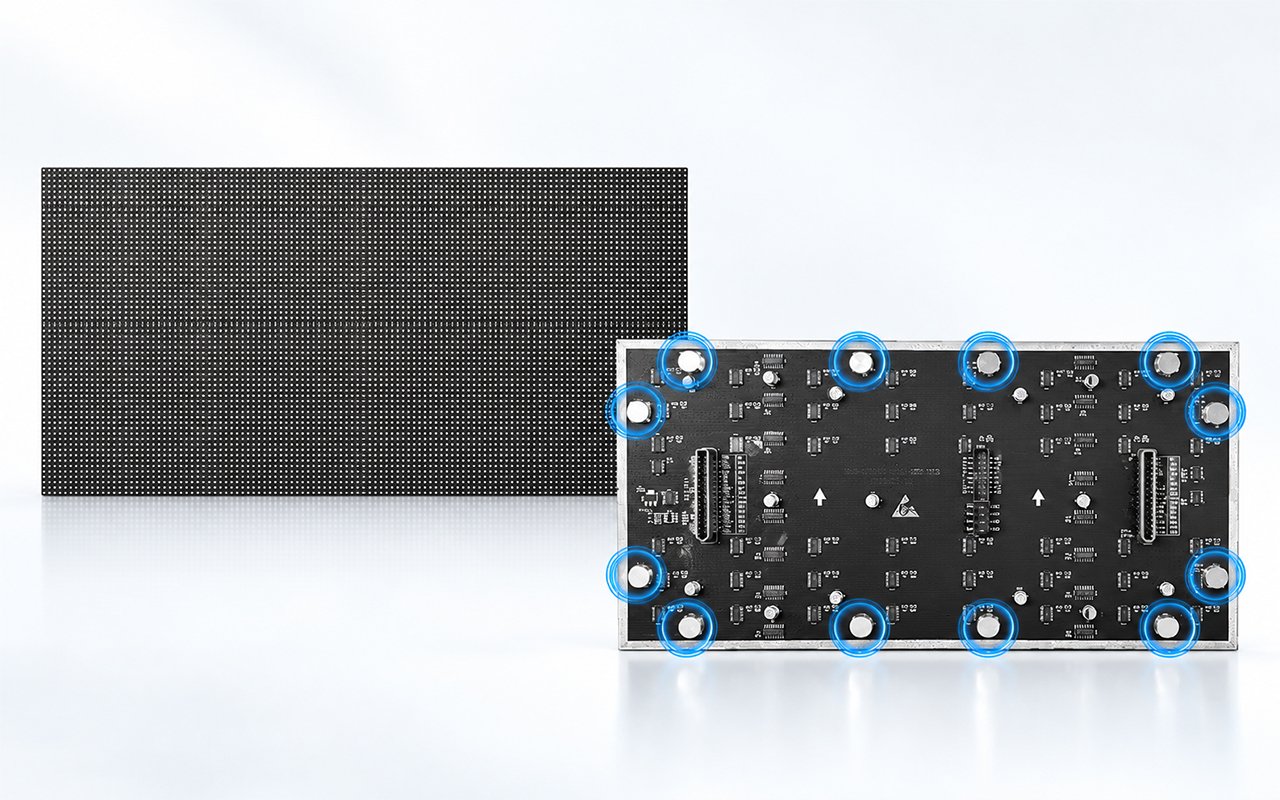

    Cable-Free Hard Connection，Dual port.module.

    Board-to-board hard connectors replace flat cables between modules — fewer connection points means fewer failure points, faster assembly, installation is not divided into left and right
